FTS-200 Series

Product Description

Description :

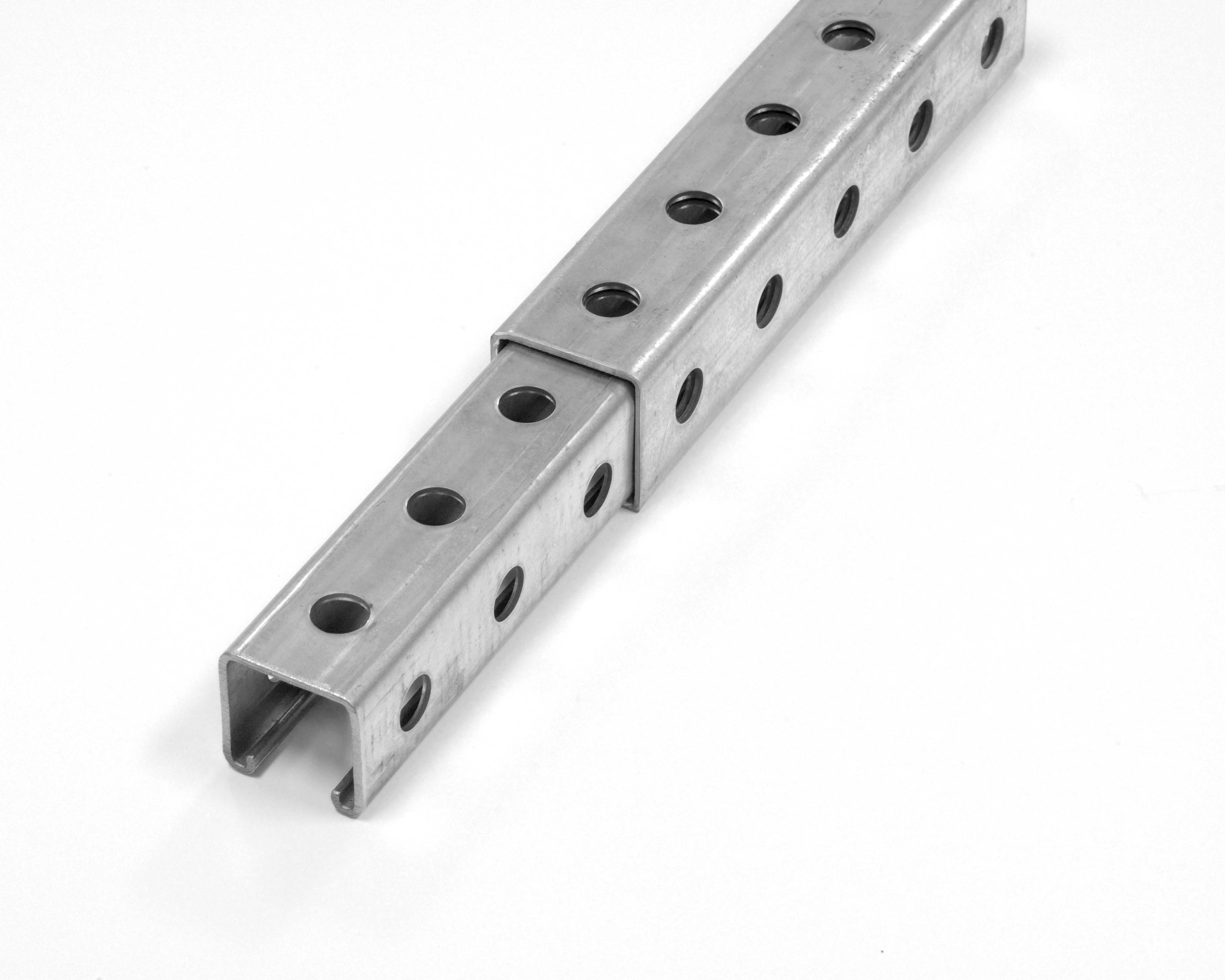

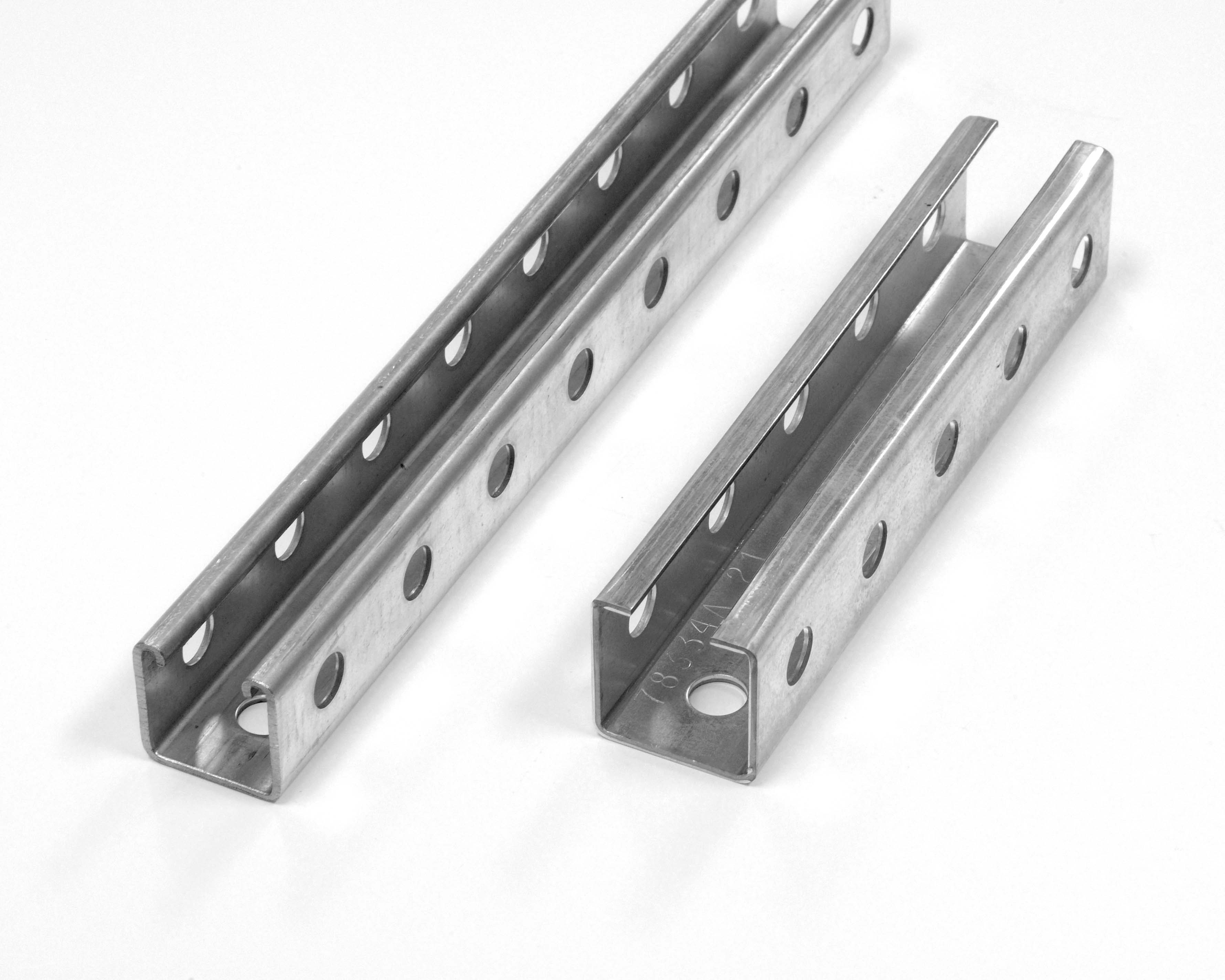

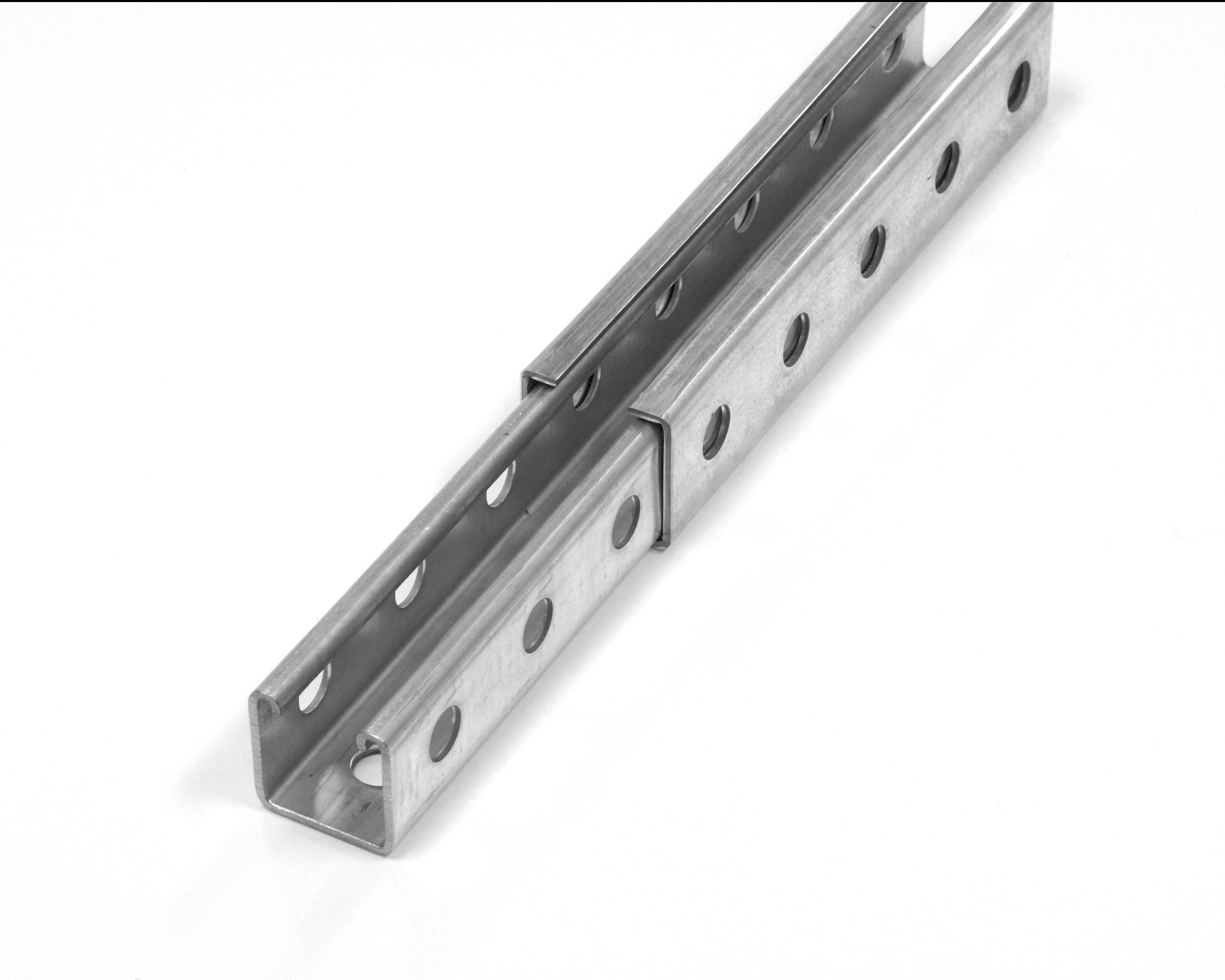

1-7/8" x 1-7/8" Telescoping Channel x 12 Gauge
Width :
1-7/8"
Height :
1-7/8"
Gauge :
12
Thickness :
.098
Weight Per FT :
1.93

Section Properties

SECTION PROPERTIES
WT/FT
LBS. 		AREA
SQ. IN.
1.93 0.458
X-X AXIS
Ix
in4 		Sx
in3 		Rx
in
0.253 0.253 0.743
Y-Y Axis
Iy
in4 		Sy
in3 		Ry
in
0.276 0.294 0.776
I = Moment of Inertia  S = Section Modulus  R = Radius of Gyration

Available Finishes

Pre-Galvanized (PG) – G90 per ASTM A653 (0.90 oz/sq ft; 0.77 mil thickness) Meets physical requirements of Grade 33
Plain (PL) – ASTM A1011 (Meets physical requirements of Grade 33)
Green (GR)
Custom colors available upon request

Available Fabrications

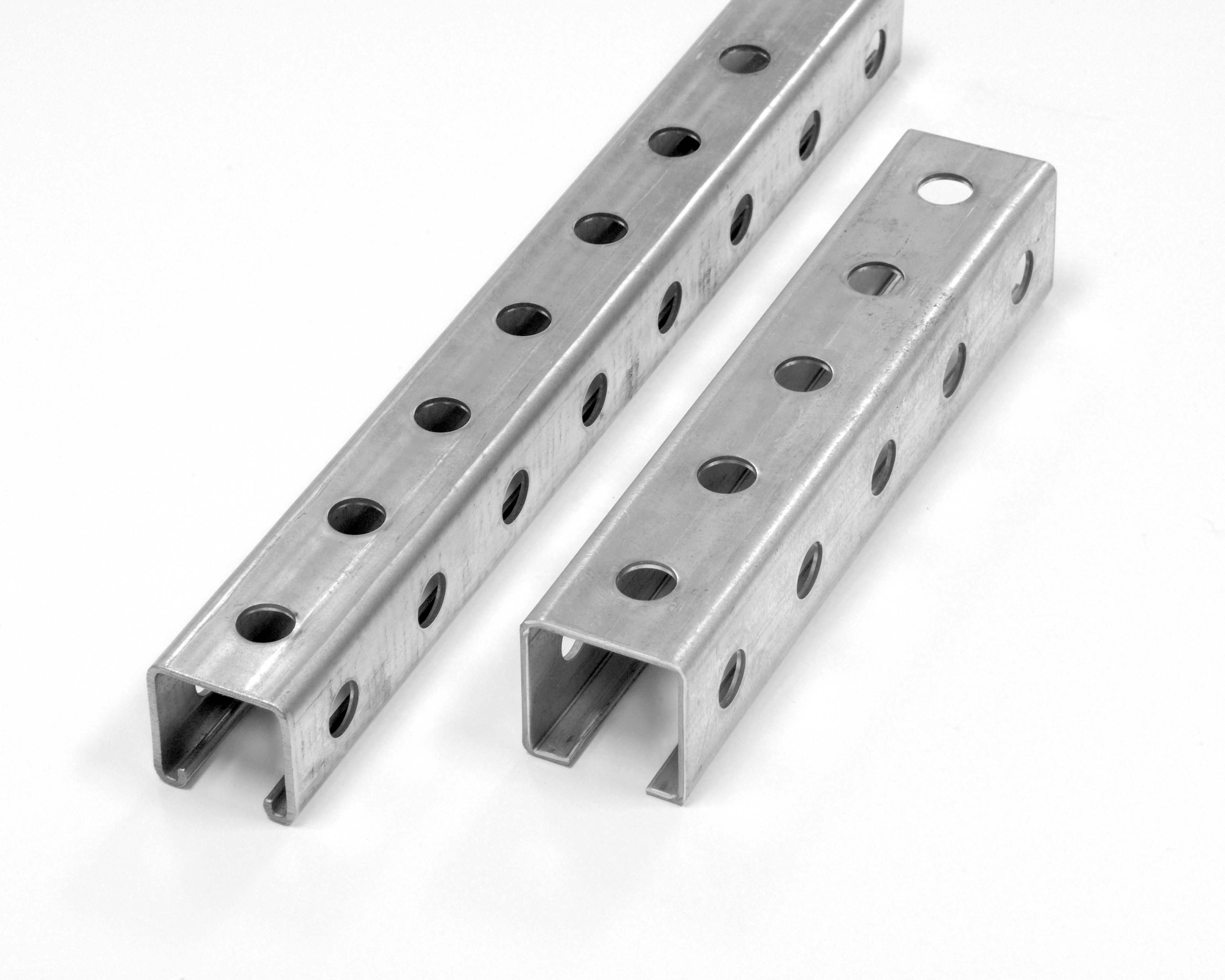

Holes (H) 9/16" Holes 1-7/8" on Center
Custom channel fabrications available upon request
