FS-700 Series

Product Description

Description :

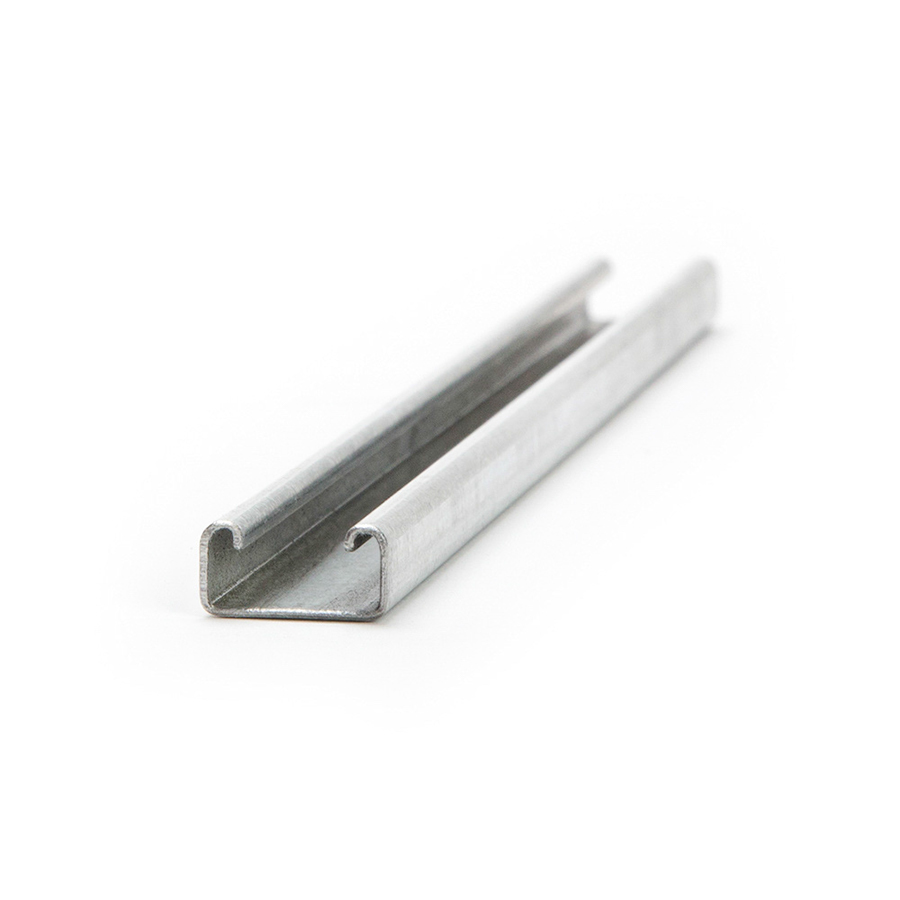

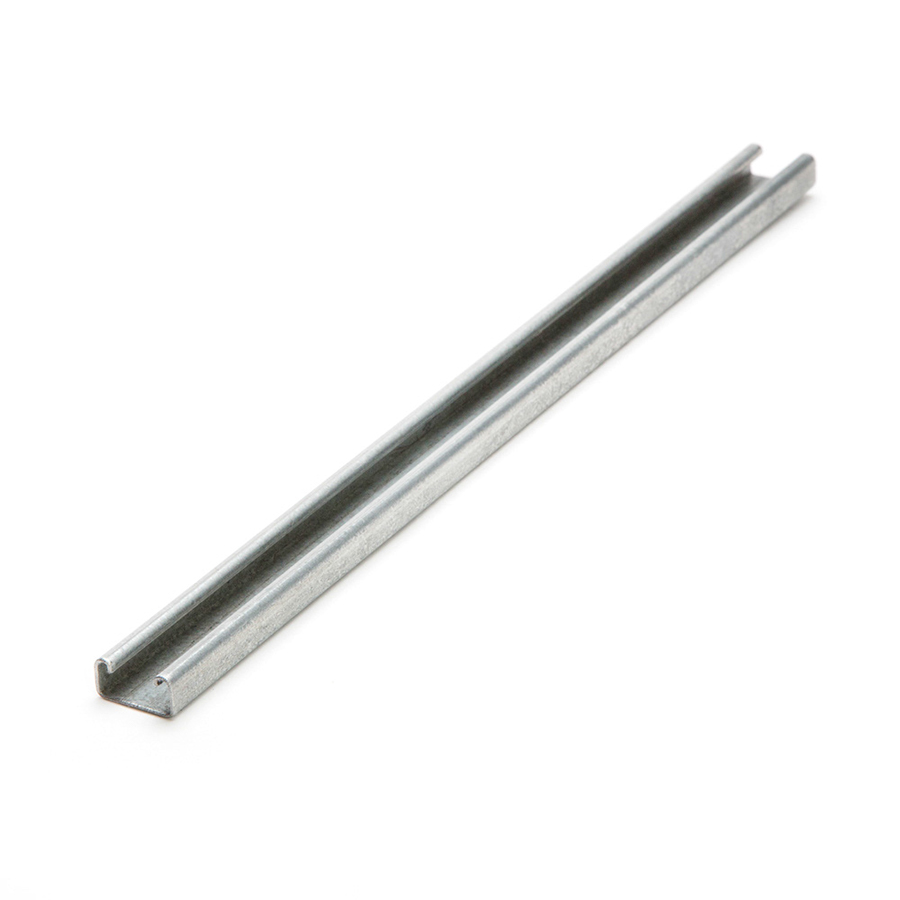

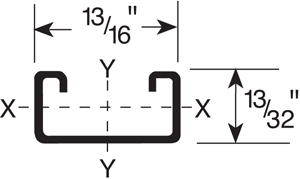

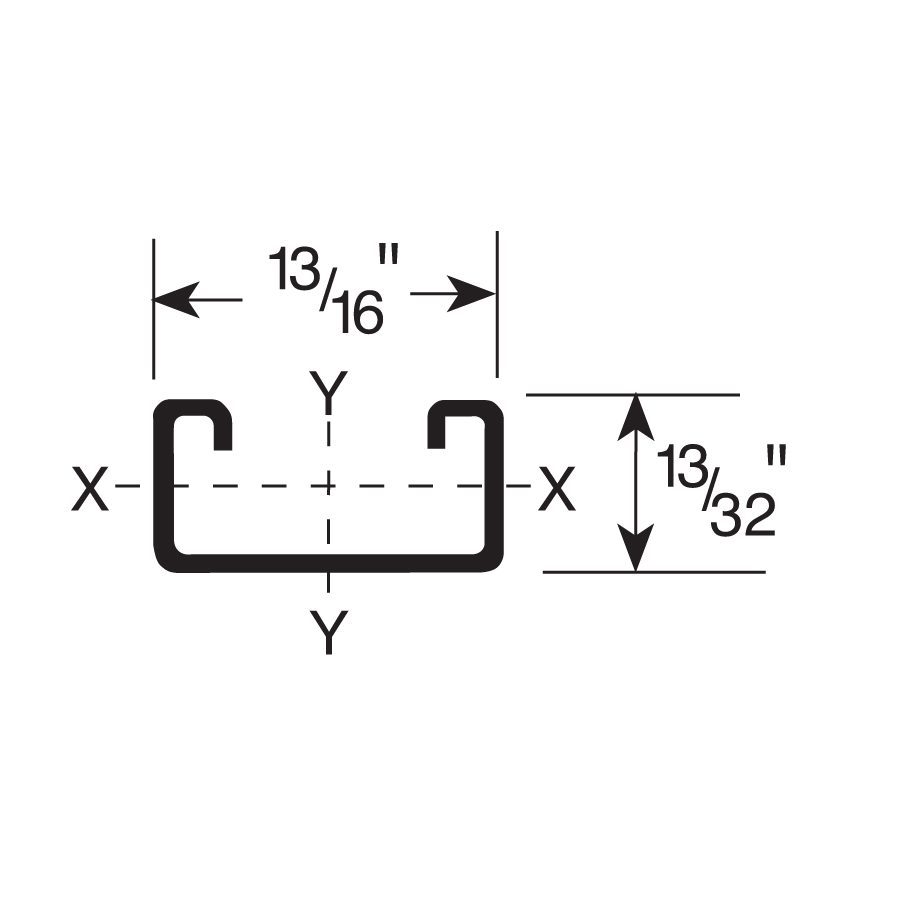

13/16" x 13/32" Channel x 19 Gauge
Width :
13/16"
Height :
13/32"
Gauge :
19
Thickness :
.04375
Weight Per FT :
.24

Additional Product Information & Downloads

FS-700 Series

Section Properties

SECTION PROPERTIES
WT/FT
LBS. 		AREA
SQ. IN.
.24 .071
X-X AXIS
Ix
in4 		Sx
in3 		Rx
in
.002 .006 .144
Y-Y Axis
Iy
in4 		Sy
in3 		Ry
in
.007 .016 .304
I = Moment of Inertia  S = Section Modulus  R = Radius of Gyration

Available Finishes

Pre-Galvanized (PG) – G90 per ASTM A653 (0.90 oz/sq ft; 0.77 mil thickness) Meets physical requirements of Grade 33
Plain (PL) – ASTM A1011 (Meets physical requirements of Grade 33)
Green (GR)
Hot Dip Galvanized (HD) – ASTM A123 Grade 85 (3.3 mil thickness) Meets physical requirements of Grade 33
Gold (GD) – ASTM B633 Type II SC2 with yellow chromate (0.30 mil thickness)
Aluminum (AL) – 6005-T5 (Exceeds 6063-T6 strength)
Stainless Steel (Type 316 [ST6] or 304 [ST4]) – ASTM A240
Custom colors available upon request

Available Fabrications

Short Slots (SS) 1-1/8" x 9/16" Slots 2" on Center
Long Slots (SL) 3" x 13/32" Slots 4" on Center
Universal Slots (US) 1-1/8" x 13/32" and 1-1/8" x 9/16" Slots 2" on Center
Holes (H) 9/16" Holes 1-7/8" on Center
Knockouts (KO) 7/8" Diameter Knockouts 6" on Center
Custom channel fabrications available upon request
