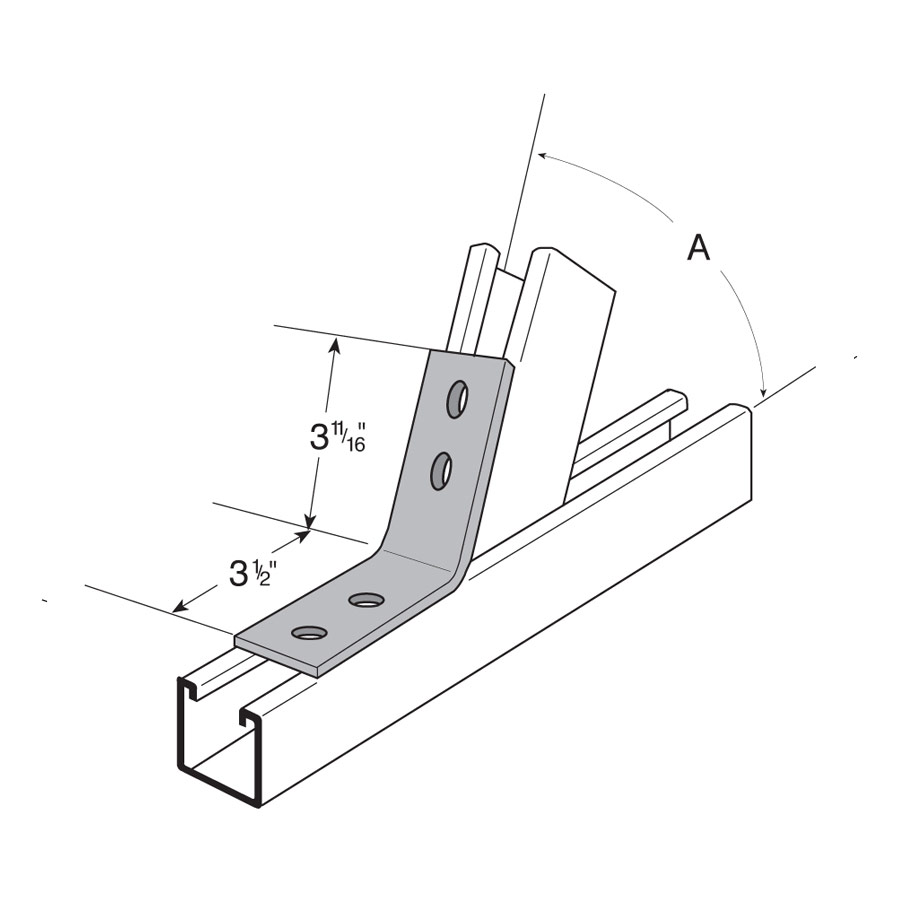

FS-5145 Series

Product Description

Description:
4-Hole Open Angle


Related Products

Part NoDescriptionWeightWidthThicknessHole DiameterA DimensionHole Spacing End DistanceHole Spacing Center to CenterFinishFinish SpecificationMaterial Specification
FS-5145-30 E/G4-Hole Open 30-Degree AngleWt./Pc.=.781-5/8"1/4"9/16"30 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
FS-5145-45 E/G4-Hole Open 45-Degree AngleWt./Pc.=.781-5/8"1/4"9/16"45 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
FS-5145-60 E/G4-Hole Open 60-Degree AngleWt./Pc.=.781-5/8"1/4"9/16"60 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
