Back to Product List

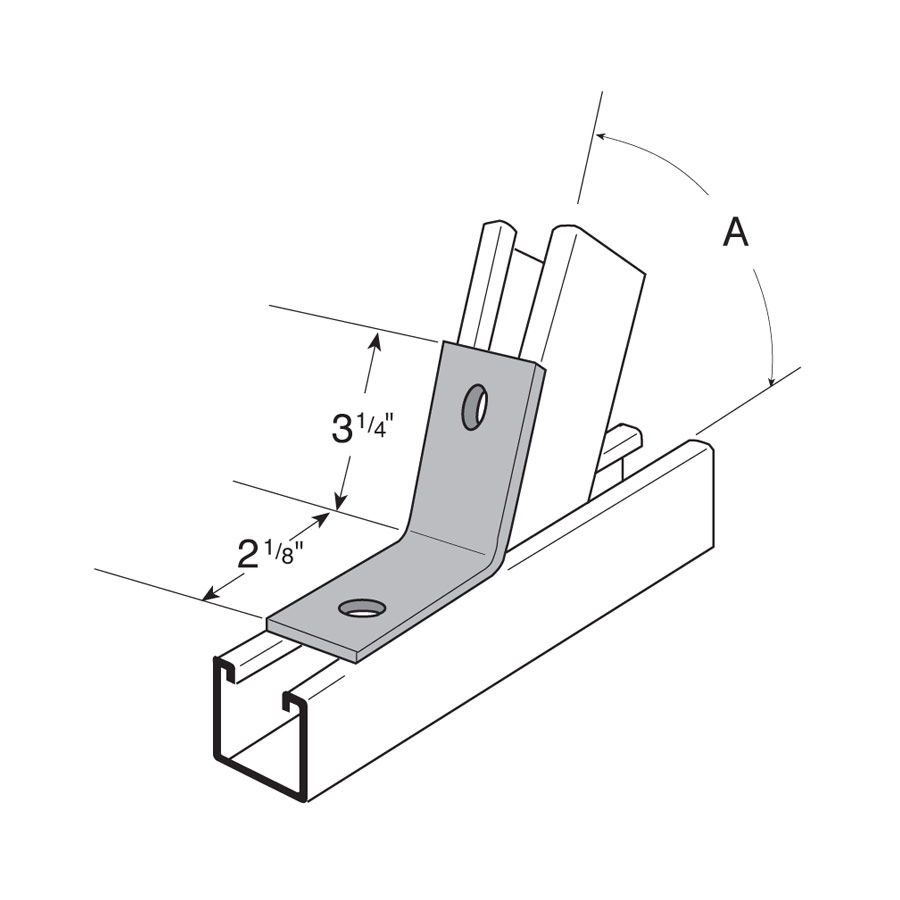

FS-5143 Series

Product Description

Description:
2-Hole Open Angle


Related Products

Part NoDescriptionWeightWidthThicknessHole DiameterA DimensionHole Spacing End DistanceHole Spacing Center to CenterFinishFinish SpecificationMaterial Specification
FS-5143-30 E/G2-Hole Open 30-Degree AngleWt./Pc.=.571-5/8"1/4"9/16"30 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
FS-5143-45 E/G2-Hole Open 45-Degree AngleWt./Pc.=.571-5/8"1/4"9/16"45 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
FS-5143-60 E/G2-Hole Open 60-Degree AngleWt./Pc.=.571-5/8"1/4"9/16"60 Degrees13/16"1-7/8"Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped GalvanizedASTM B-633 (Type III SC1 (0.2 mil thickness))ASTM A575 or ASTM A1011 Grade 33
