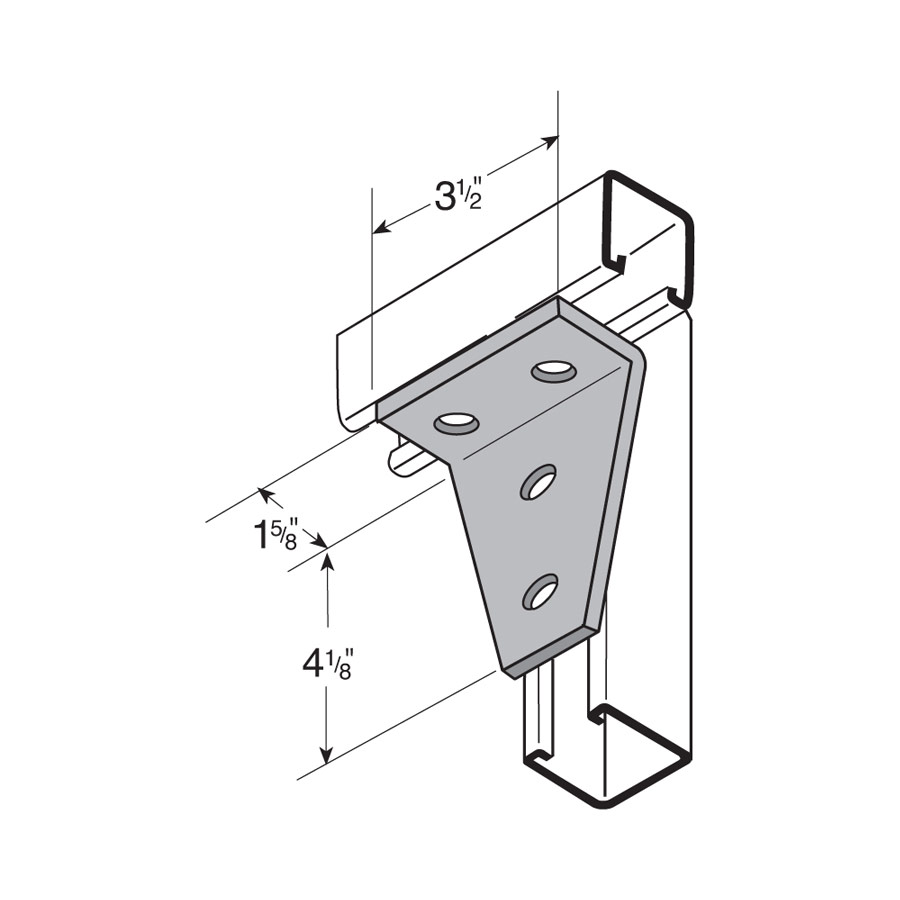

FS-5109 E/G

Product Description

Description:
4-Hole Angle Splice
Weight:
Wt./Pc.=1.05
Width:
1-5/8"
Thickness:
1/4"
Hole Diameter:
9/16"
Hole Spacing End Distance:
13/16"
Hole Spacing Center to Center:
1-7/8"
Finish:
Electro-Galvanized, Plain, Green, Stainless Type 304, Stainless Type 316, Aluminum, Hot-Dipped Galvanized
Finish Specification:
ASTM B-633 (Type III SC1 (0.2 mil thickness))
Material Specification:
ASTM A575 or ASTM A1011 Grade 33
